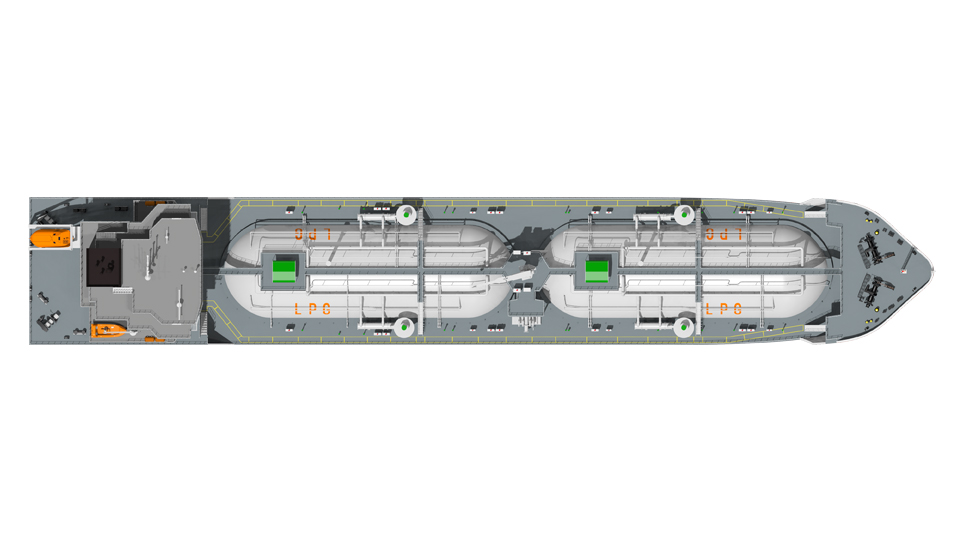

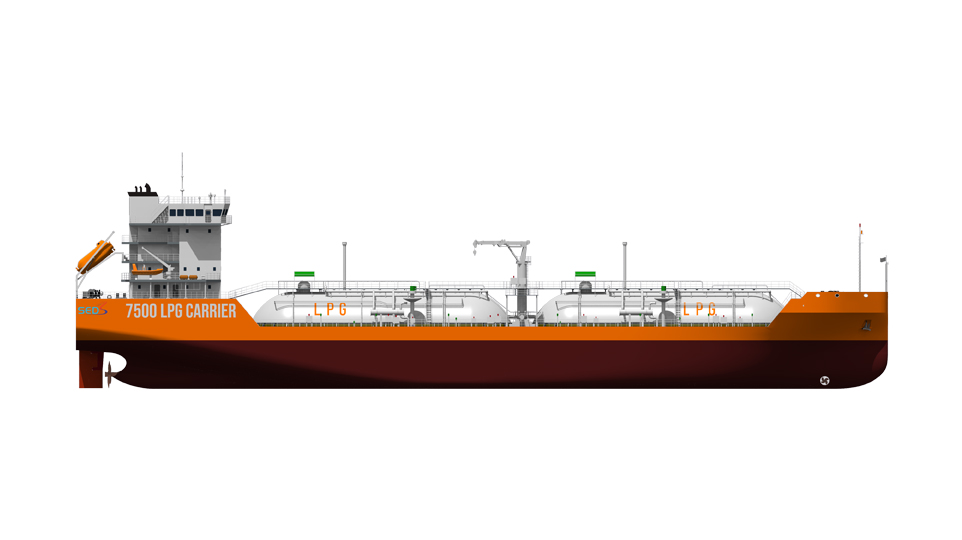

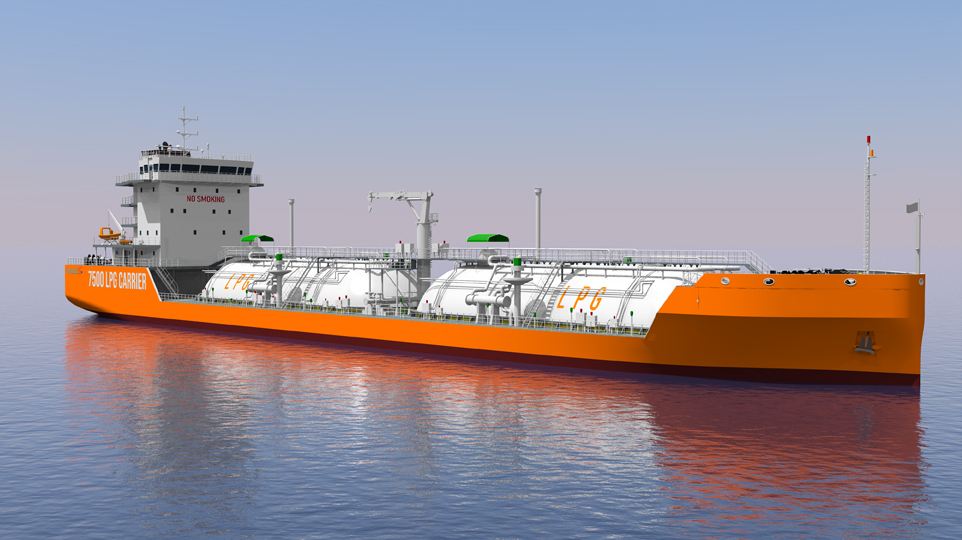

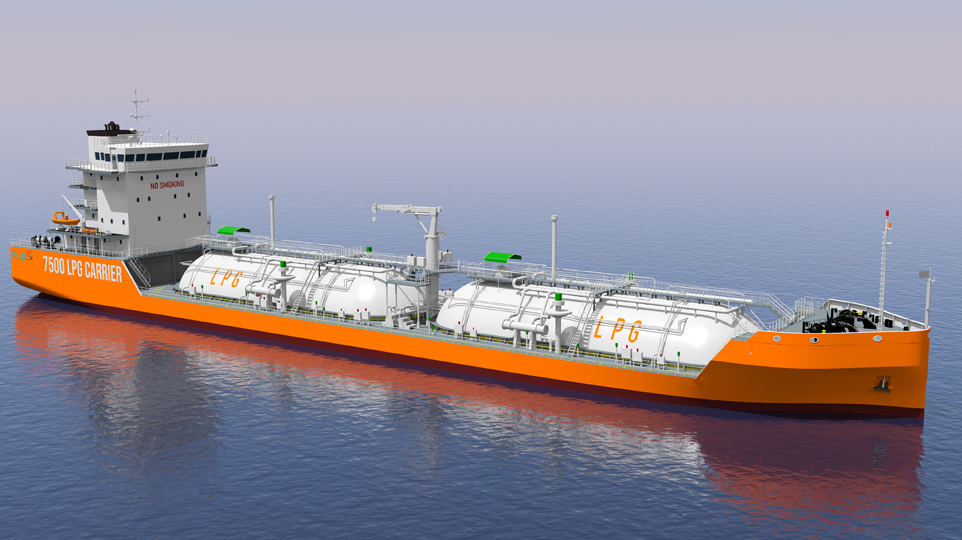

LPG CARRIER (TYPE-C)

Vessel is built as single-screw, diesel engine driven, ocean-going LPG carrier with two independent Type-C cylindrical cargo tanks, one balanced rudder and aft accommodation.

Vessel features a combination of filter and UV type water ballast treatment system along with cathodic protection by means of ICCP.

LR ✠ 100A1 Liquefied gas carrier, 2PG, ✠LMC, UMS, SCM, Unrestricted navigation, EP, In-water survey , IG, BWMP (T&S)

Particulars

  • Length o.a abt. 117 metres
  • Length p.p abt. 112 metres
  • Breadth abt. 19.2 metres
  • Depth abt. 9 metres
  • Draught Design abt. Td 5.8 metres
  • Deadweight Design abt. 5000 tonnes
  • Draught Summer abt. Ts 6.8 metres
  • Deadweight Summer abt. 6800 tonnes
  • Total Cargo tank volume abt. 7500 m3 (2 C-type tanks abt. 3,750 m³ each)
