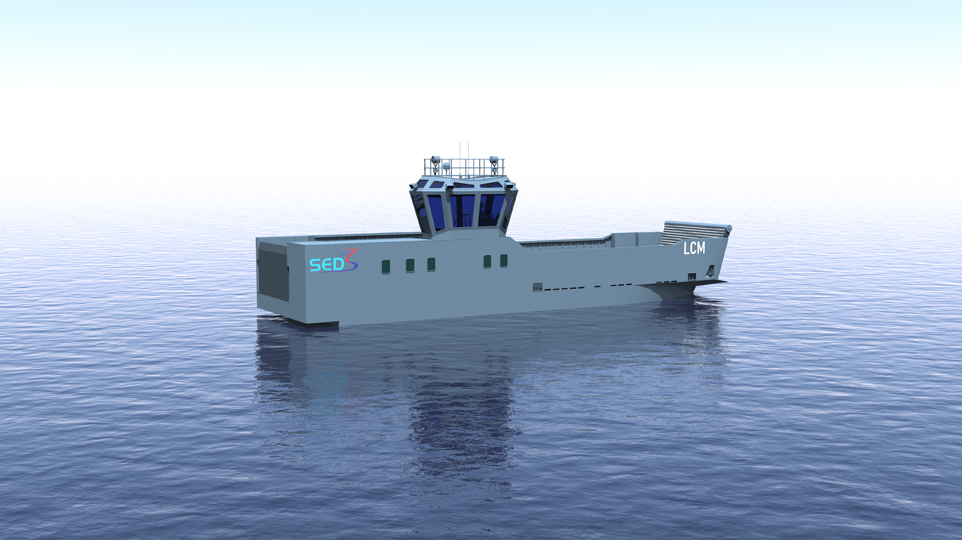

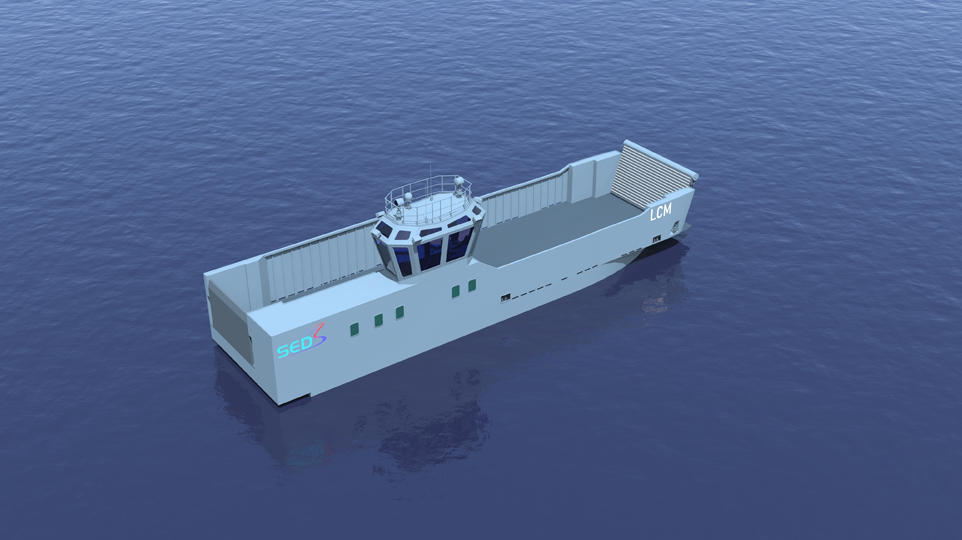

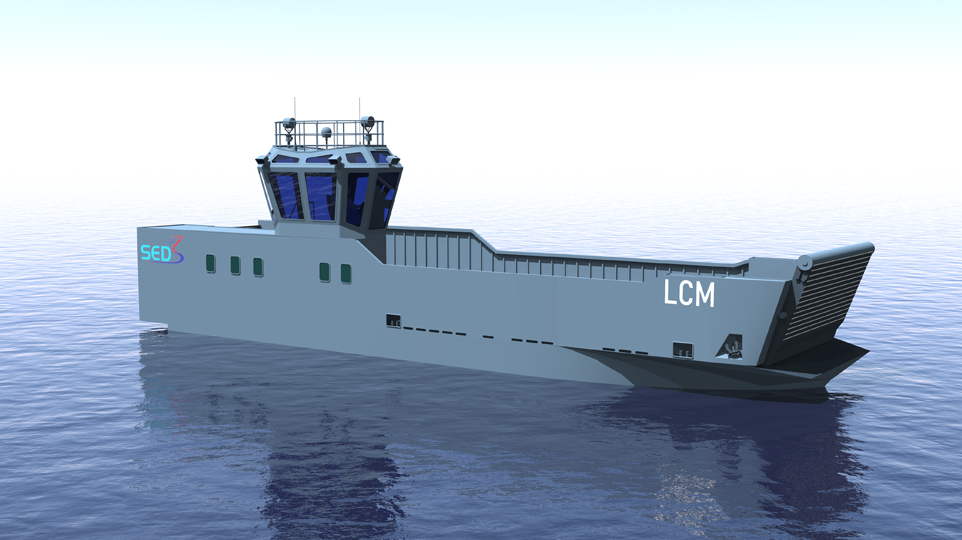

LANDING CRAFT MECHANISED

Vessel is designed with shallow water operability, having cargo carrying capacity of 60 tonnes and an endurance of 200 nautical miles accompanied by aft and forward hydraulic ramps.

Features a twin screw water jet propulsion with 20 knots on light load and 15 knots on full load capability.

Precision-engineered bow design providing beaching capability, sea worthiness with survivability upto SS5 and operability upto SS3.

Particulars

  • Length o.a abt. 25.3 metres
  • Length p.p abt. 23.1 metres
  • Breadth mld. Abt. 6.5 metres
  • Depth abt. 2.5 metres
  • Draught Design abt. Td 1.52 metres
  • Speed @full load 15 knots
  • Total complement 3
  • Class IRS
